Yukings industrial noise barriers - heavy-gauge steel-faced absorption panels up to 140 mm with modular H-beam support system for factory, power station and energy plant projects.

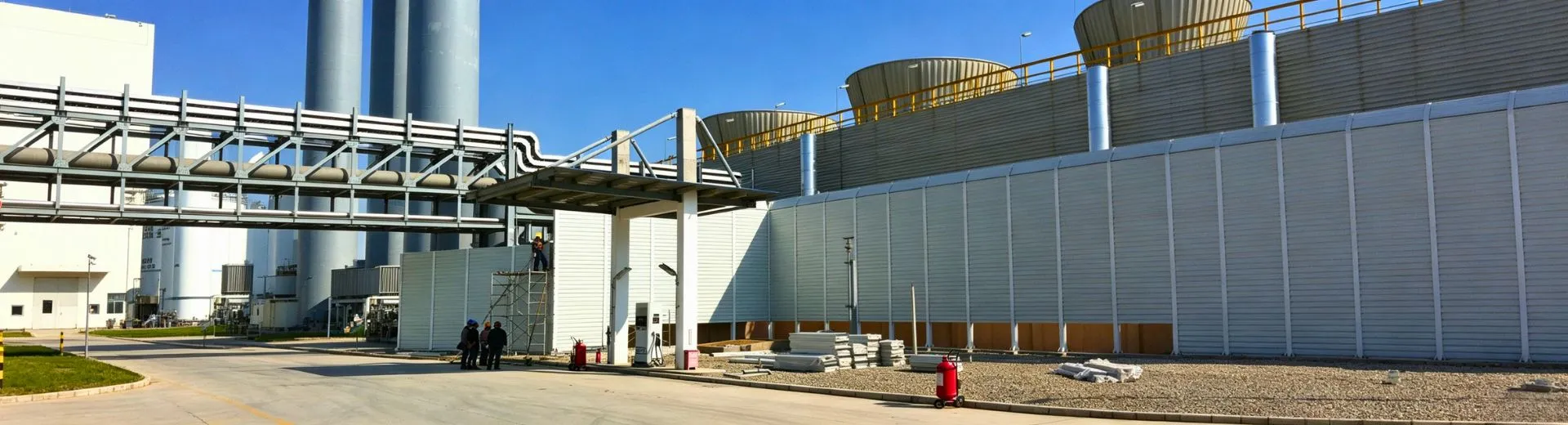

Yukings industrial noise barriers are designed for heavy-duty industrial environments, including power plants, oil & gas facilities, factories, data center cooling systems, pumping stations and process plants. Panels combine a heavy-gauge galvanized steel face with high-density mineral wool core and optional acoustic membrane to deliver up to 45 dB insertion loss at the plant perimeter.
| Property | Value |
|---|---|
| Insertion Loss DL (EN 1793-3) | 30 – 45 dB |
| Sound Insulation Rw (EN ISO 717-1) | 40 – 55 dB |
| Panel Depth | 100 / 120 / 140 / 160 / 180 mm |
| Panel Face Material | Heavy-gauge DX51D+Z galvanized steel or EN AW-5754 aluminum alloy |
| Panel Face Thickness | 1.5 / 2.0 / 2.5 mm (heavy-duty option) |
| Core Material | High-density mineral wool + acoustic membrane (on request) |
| Support System | H-beam or I-beam posts, project designed |
| Post Spacing | 1.5 m or 2.0 m (heavy-duty bays) |
| Barrier Height | 3.0 m up to 12 m on request |
| Design Service Life | 25 years |
| Structural Warranty | 15 years |
| Corrosion Resistance | ISO 12944 C5-M (severe industrial / coastal) |
| Fire Rating | Class A (EN 13501-1) |
| Wind Load Rating | 1.5 kN/m2 (EN 1991-1-4, project specific) |
| Optional Features | Roof absorption baffle arrays, machine enclosure panels |
| Finish | Hot-dip galvanized + optional RAL powder coat |
From raw material sourcing through acoustic testing and containerized shipping, Yukings controls every stage of the noise barrier production chain.
Every panel is inspected and tested before dispatch, with full quality dossier including CE and ISO test reports.
Custom heights, finishes, colors (RAL), transparent window sections, perforation patterns and green-wall integration available.
Panel face material with mineral wool core. Hot-dip galvanized steel posts with optional powder coat finish.
Typical panel depths from 80 to 140 mm depending on the insertion loss requirement of your project.
Designed for a 25-year service life with a 15-year structural warranty on Yukings-manufactured panels.
Full containerized shipping (20 ft / 40 ft HC / 40 ft OOG) with full shipping documents delivered with every shipment.
