Yukings railway noise barriers for high-speed rail, metro, light-rail and commuter corridors. Metal-louvered panels with mineral wool core, optional PC transparent windows.

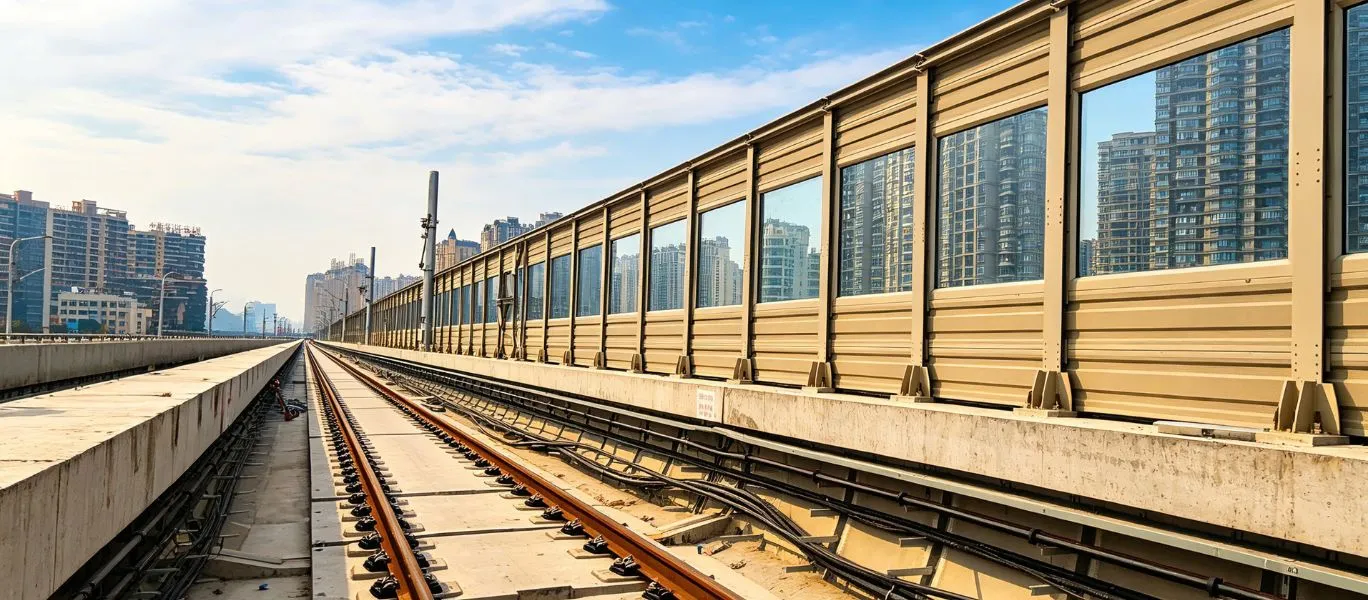

Yukings railway noise barriers are designed for heavy-vibration and high-aerodynamic-pulse service conditions along high-speed rail, metro and commuter rail corridors. Panels combine metal-louvered absorption faces with hydrophobic rock-wool cores, optional PC transparent window sections for landscape visibility, and are mounted on galvanized steel H-posts with elastomeric vibration isolation pads.
| Property | Value |
|---|---|
| Insertion Loss DL (EN 1793-3) | 25 – 45 dB |
| Sound Insulation Rw (EN ISO 717-1) | 32 – 52 dB |
| Panel Width | 2,500 mm |
| Panel Height | 500 mm |
| Panel Depth | 80 / 100 / 120 / 140 mm |
| Panel Face Material | DX51D+Z galvanized steel or EN AW-5754 aluminum alloy |
| Panel Face Thickness | 1.5 mm (standard) / 2.0 mm (heavy-duty) |
| Perforation | 2.0-3.0 mm perforated metal, 25-35% open area |
| Core Material | Hydrophobic rock-wool, 80-140 kg/m3 |
| H-post Column Size | H 100 x 100 x 6 x 8 mm or H 125 x 125 x 6.5 x 9 mm |
| H-post Spacing | 2.0 m or 2.5 m (bay spacing) |
| Barrier Height Range | 2.0 – 8.0 m (heights >5.0 m on request) |
| Design Service Life | 25 years |
| Structural Warranty | 15 years |
| Corrosion Resistance | ISO 12944 C4-H |
| Fire Rating | Class A (EN 13501-1) |
| Wind Load Rating | 1.0 kN/m2 (EN 1991-1-4) |
| Aerodynamic Pulse Resistance | Tested for train speed 350 km/h |
| Finish / Color | RAL 7030 stone grey or custom RAL color |
| Transparent Window Option | Yes - 8 / 10 / 12 mm polycarbonate sheet |
From raw material sourcing through acoustic testing and containerized shipping, Yukings controls every stage of the noise barrier production chain.
Every panel is inspected and tested before dispatch, with full quality dossier including CE and ISO test reports.
Custom heights, finishes, colors (RAL), transparent window sections, perforation patterns and green-wall integration available.
Panel face material with mineral wool core. Hot-dip galvanized steel posts with optional powder coat finish.
Typical panel depths from 80 to 140 mm depending on the insertion loss requirement of your project.
Designed for a 25-year service life with a 15-year structural warranty on Yukings-manufactured panels.
Full containerized shipping (20 ft / 40 ft HC / 40 ft OOG) with full shipping documents delivered with every shipment.
Our Railway Noise Barriers specialists will respond to your project inquiry within 24 hours, including technical guidance and pricing where applicable.
