Yukings aluminum noise barriers use EN AW-5754 (AlMg3) marine-grade aluminum alloy panels. Approximately one third the weight of equivalent steel barriers, aluminum noise barriers reduce structural dead-load on bridge parapets and overpass structures, and are inherently corrosion resistant in coastal and high-humidity environments.

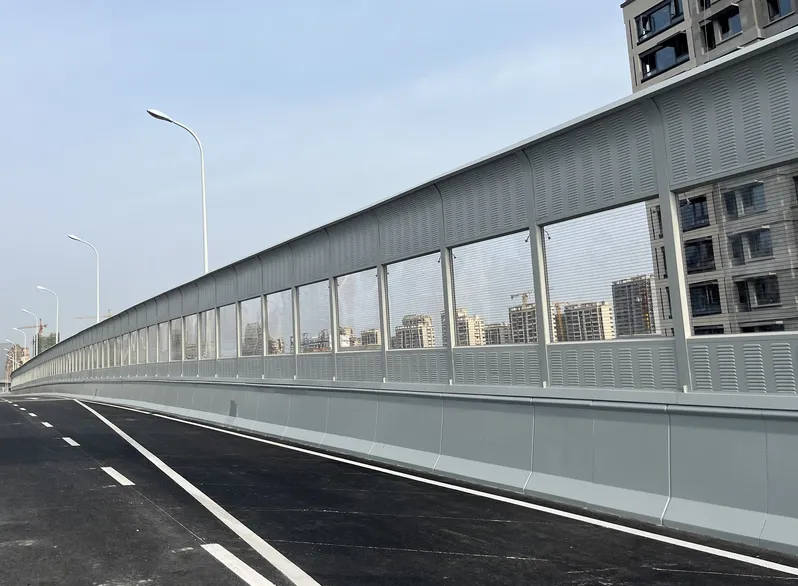

Yukings aluminum noise barriers combine a louvered or perforated EN AW-5754 aluminum alloy face with a high-density hydrophobic mineral-wool core, offering a lightweight, corrosion-resistant noise control solution. At roughly one third of the weight of equivalent steel panels, aluminum barriers minimize dead-load on bridge parapets and overpass structures.
| Property | Value |
|---|---|
| Insertion Loss DL | 22 – 35 dB |
| Sound Insulation Rw | 28 – 42 dB |
| Panel Width | 2500 mm (8 ft 2 in) standard |
| Panel Height | 500 mm (20 in) |
| Panel Depth | 80 / 100 / 120 mm |
| Panel Material | EN AW-5754 aluminum alloy 1.5-2.0 mm |
| Perforation Pattern | Round holes 30-40% or louvers |
| Infill Material | High-density hydrophobic rock-wool 80-120 kg/m3 |
| H-post Column | Aluminum alloy H 100x100x6x8 or galvanized steel H-post with aluminum bracket |
| H-post Spacing | 2.0 or 2.5 m bays |
| Barrier Height | 2.0 – 4.5 m |
| Service Life | 25 yr |
| Warranty | 15 yr |
| Corrosion | C5-M marine-grade corrosion classification |
| Fire Rating | Class A EN 13501-1 |
| Finish | Mill finish / anodized / PVDF powder coat |
| Transparent Window | 8 / 10 / 12 mm polycarbonate |
Marine-grade aluminum alloy construction with optional anodized or PVDF powder coat finish for long-life corrosion resistance in coastal and high-humidity climates.
Every panel is inspected and tested before dispatch, with full quality dossier including CE and ISO test reports.
Approximately one third the weight of equivalent steel panels, minimizing structural dead-load on bridge parapets and overpass structures.
EN AW-5754 (AlMg3) alloy with C5-M corrosion classification, delivering long service life in coastal and high-humidity environments.
Mill finish, anodized or PVDF powder coat finishes available to match project aesthetic requirements.
Engineered for a 25-year service life with a 15-year structural warranty on Yukings-manufactured aluminum panels.
Full containerized shipping (20 ft / 40 ft HC / 40 ft OOG) with full shipping documents delivered with every shipment.
Compare aluminum noise barriers with alternative Yukings barrier construction materials for your project specification.
DX51D+Z hot-dip zinc-coated steel panels with 25-year corrosion resistance for highways and railways.
Learn more →
UV-stabilized polycarbonate and acrylic clear panels preserving driver line-of-sight on highways and urban roads.
Learn more →
Pre-cast reinforced concrete panels with excellent mass-law low-frequency attenuation for heavy-truck highways.
Learn more →
Metal-louvered, transparent and concrete panel combinations for expressways, ring roads and interchange noise control.
Learn more →

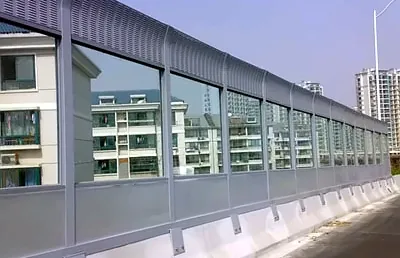

Residential community and neighborhood noise attenuation combining absorptive panels with transparent window sections.
