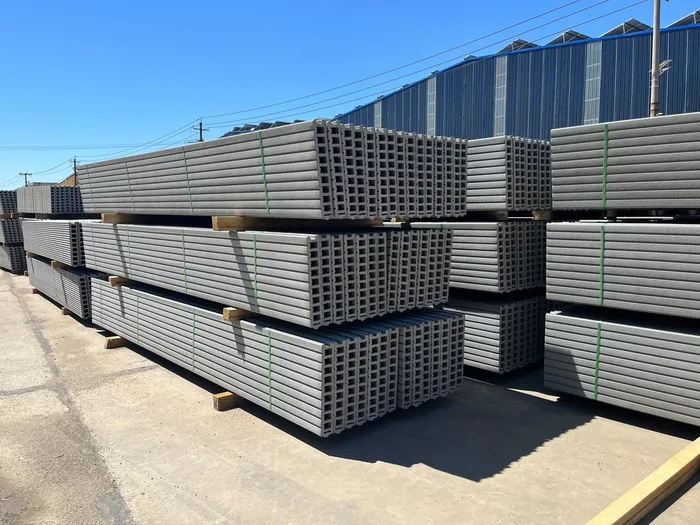

Yukings concrete noise barriers use 50-120 mm pre-cast reinforced concrete panels (or in-situ cast on request). Concrete's high surface mass (2400 kg/m3) makes it the best performer for low-frequency noise attenuation dominated by truck engines, railway rumble and industrial machinery. Panels are reinforced with steel rebar or fiber and mounted on concrete foundation blocks or H-posts.
Yukings concrete noise barriers use 50-120 mm pre-cast reinforced concrete panels (or in-situ cast on request). With a surface mass of 2400 kg/m3, concrete delivers the best mass-law low-frequency attenuation for truck engines, railway rumble and industrial machinery. Panels are reinforced with steel rebar mesh or steel fiber and mount on concrete strip foundations or galvanized steel H-posts.
| Property | Value |
|---|---|
| Insertion Loss DL | 35 - 48 dB |
| Sound Insulation Rw | 45 - 58 dB |
| Panel Material | Pre-cast reinforced concrete |
| Panel Density | 2400 kg/m3 |
| Panel Thickness | 50 / 80 / 120 mm |
| Reinforcement | Steel rebar mesh or steel fiber |
| Panel Width | 2000 mm or 2500 mm standard |
| Panel Height | 500 mm standard modules |
| H-post Column | Galvanized steel H 125x125 or cast-in-situ concrete column |
| Foundation Type | Concrete strip foundation or individual base blocks |
| Barrier Height | 2.5 - 6.0 m |
| Design Service Life | 50 yr |
| Structural Warranty | 20 yr |
| Compressive Strength | 40-50 MPa concrete grade C40/50 |
| Fire Rating | Non-combustible Euroclass A1 |
| Wind Load | 1.5 kN/m2 |
| Surface Finish | Standard concrete grey or colored aggregate finish |
| Mixed-Stack | Compatible with transparent polycarbonate / absorptive steel panels |
High-density pre-cast reinforced concrete panels engineered for superior mass-law low-frequency noise attenuation, with 50-year service life and 20-year structural warranty.
Every panel is inspected and batch-traceable, with full quality dossier including concrete cube compression reports and structural design certificates.
2400 kg/m3 concrete density delivering outstanding low-frequency attenuation for truck engines, railway rumble and industrial machinery.
Reinforced with steel rebar mesh or steel fiber, with concrete grade C40/50 (40-50 MPa compressive strength).
Standard concrete grey finish, or colored aggregate and textured surfaces on request to match project visual design requirements.
Engineered for a 50-year design service life with a 20-year structural warranty on Yukings-manufactured concrete panels and columns.
Concrete panels carry Euroclass A1 fire rating - non-combustible - making them ideal for tunnel approaches and industrial plant boundaries.
Compare concrete noise barriers with alternative Yukings barrier construction materials for your project specification.

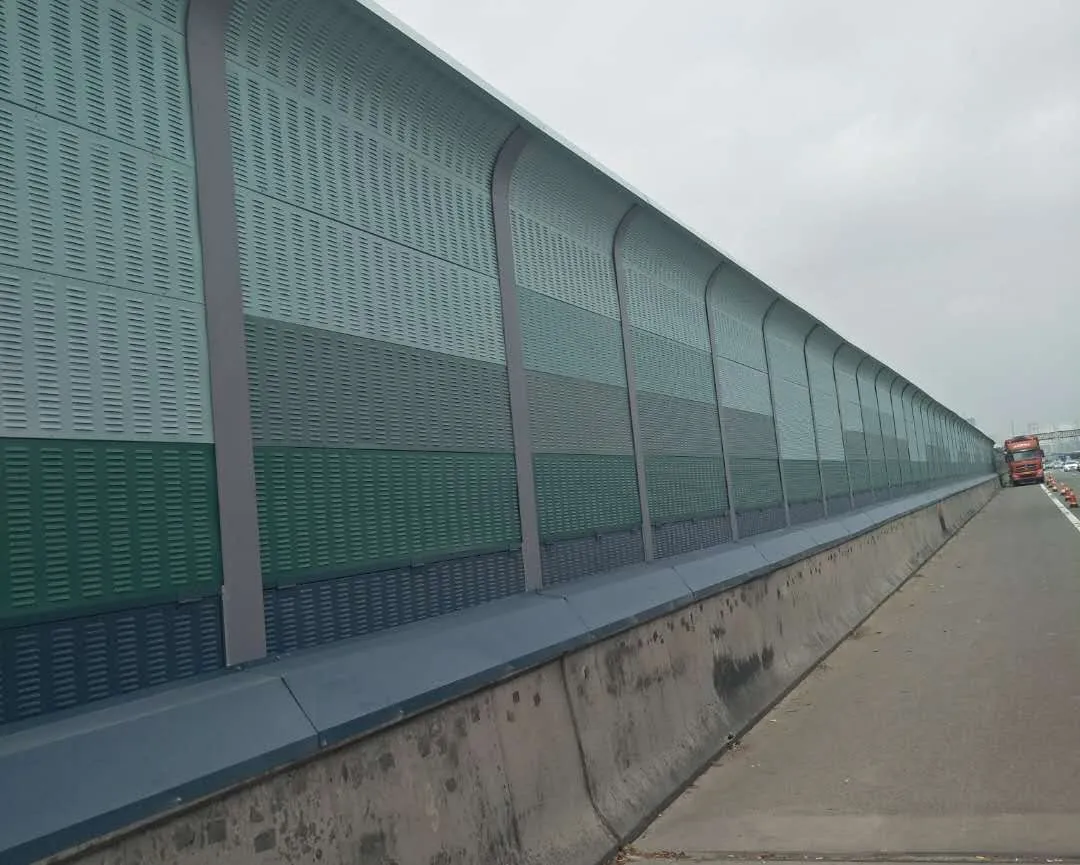

DX51D+Z hot-dip zinc-coated steel panels with 25-year corrosion resistance for highways and railways.
Learn more →

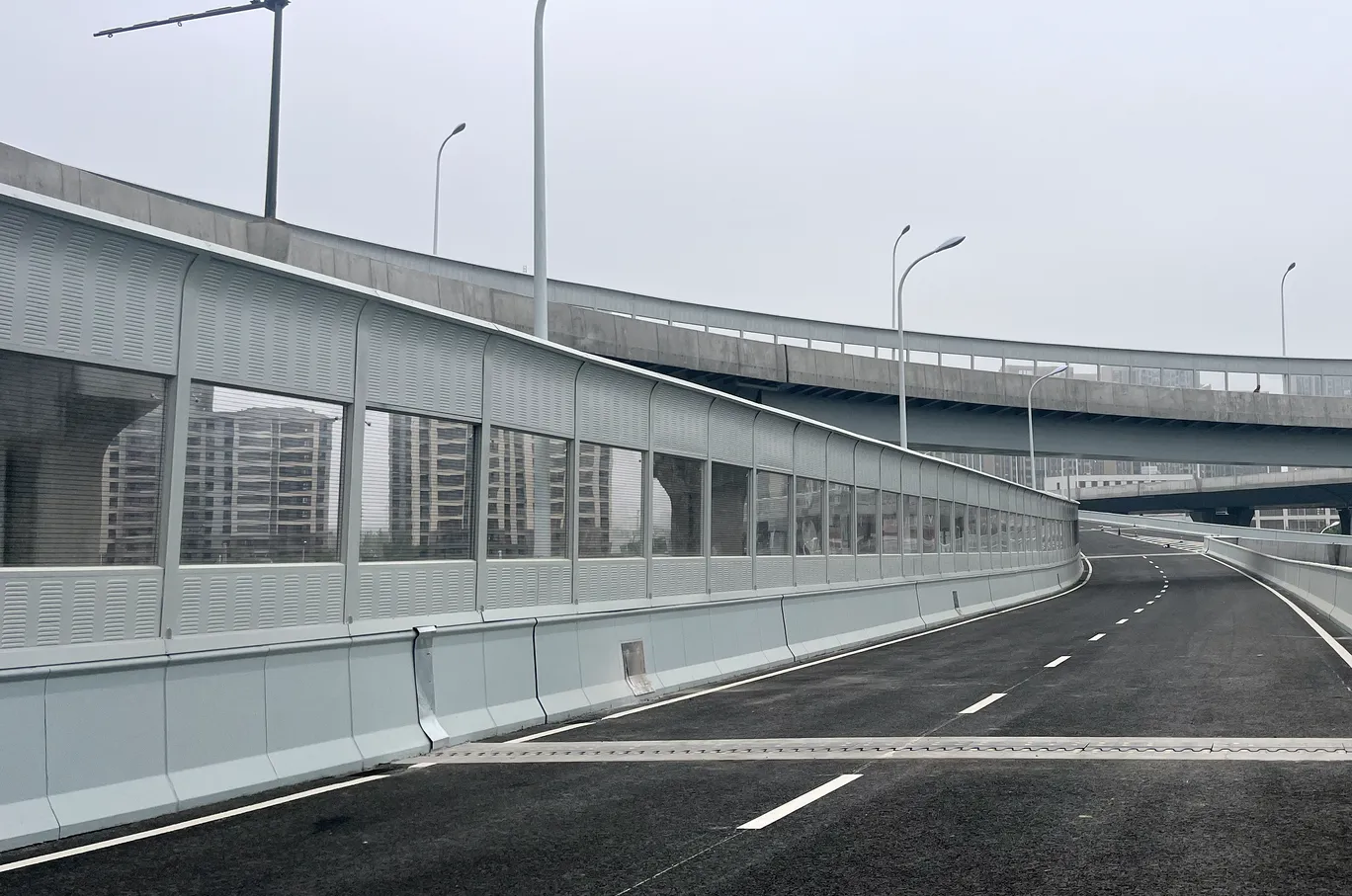

EN AW-5754 aluminum alloy panels, lightweight and corrosion-resistant, ideal for bridge parapets.
Learn more →

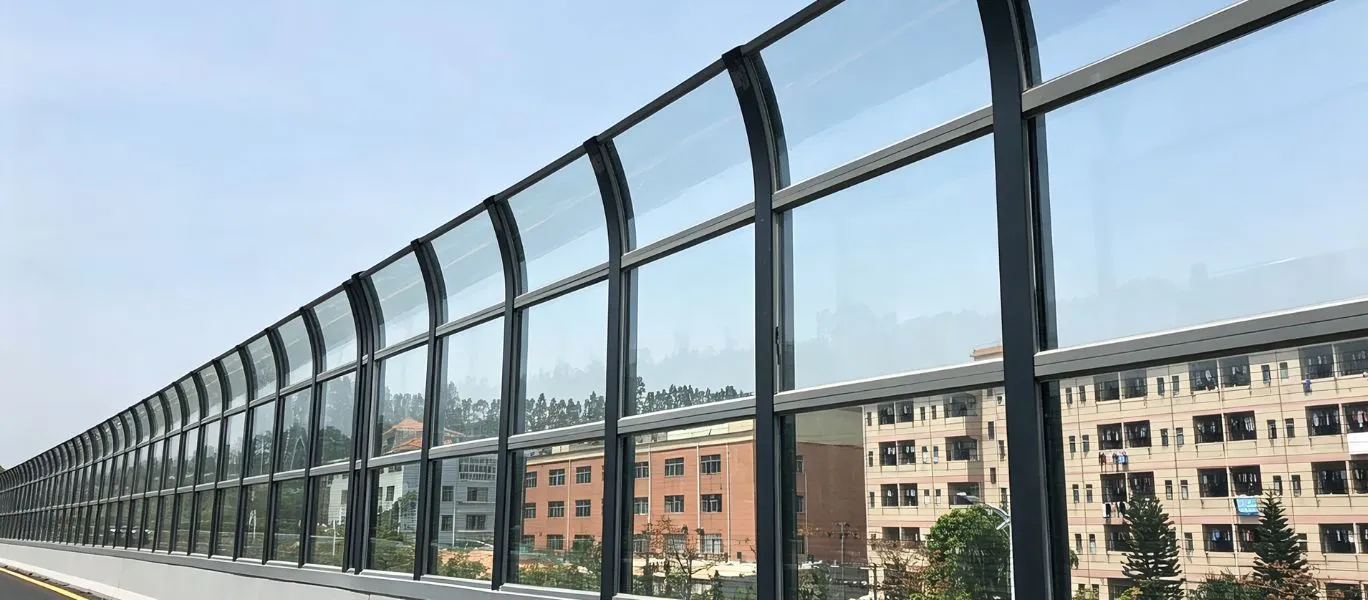

UV-stabilized polycarbonate and acrylic clear panels preserving driver line-of-sight on highways and urban roads.
Learn more →
Metal-louvered, transparent and concrete panel combinations for expressways, ring roads and interchange noise control.
Learn more →

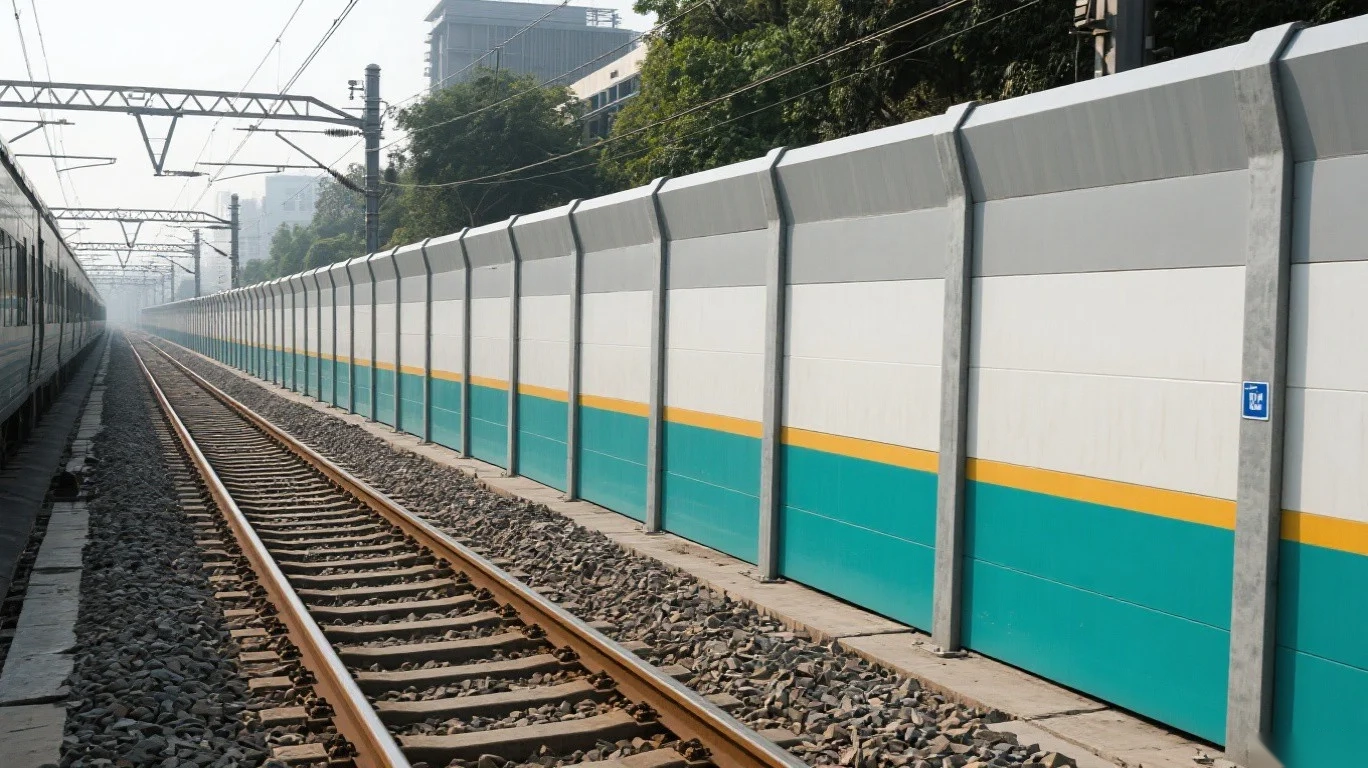

Heavy-duty absorptive and mass-law noise walls for high-speed railways, metro lines and freight trackside infrastructure.
