Yukings urban road noise barriers are designed for city streets where shorter profile heights, visual friendliness and residential aesthetics are important. Typical configurations combine 1.5-3.0 m absorptive panels at the base with 1.0-2.0 m transparent polycarbonate windows at the top, optionally with green-wall / vertical-garden panel integration or custom RAL color matching to blend with surrounding architecture.
Engineered for urban visual appeal as well as acoustic performance, Yukings city road barriers deliver residential-friendly noise control without compromising style.
Urban environments demand noise control that balances acoustic performance with visual appeal. Yukings city road barriers combine a shorter absorptive panel base with an upper transparent window section to maintain light and visibility, while optional green-wall vertical garden panels integrate planters and vegetation along the roadside for a softer residential aesthetic. Custom RAL color matching is available for any project.
Detailed specification covering insertion loss, panel construction, structural post spacing, corrosion class and transparent window options.
| Property | Value |
|---|---|
| Insertion Loss DL | 18 – 32 dB |
| Sound Insulation Rw | 25 – 40 dB |
| Panel Width | 2000 / 2500 mm |
| Panel Height | 500 mm |
| Panel Depth | 80 / 100 / 120 mm |
| Panel Face | galvanized steel / aluminum alloy perforated |
| Infill | hydrophobic rock-wool 80-120 kg/m³ |
| Transparent Top | 8 / 10 / 12 mm polycarbonate or cast acrylic |
| H-post | H 100×100×6×8 |
| H-post Spacing | 2.0 m or 2.5 m bays |
| Barrier Height | 1.5 – 3.5 m |
| Green-Wall Option | vertical garden panel integration |
| Color | custom RAL powder coat |
| Finish | hot-dip galvanized + RAL powder coat |
| Design Service Life | 25 years |
| Structural Warranty | 15 years |
| Fire Rating | Class A EN 13501-1 |
| Wind Load | 1.0 kN/m² |
Engineered for urban visual appeal as well as acoustic performance, Yukings city road barriers deliver residential-friendly noise control without compromising style.
1.5–3.5 m barrier heights optimized for city streets, residential setbacks and low-rise urban environments.
Smooth powder-coat finishes with custom RAL colors to match surrounding architecture and urban design guidelines.

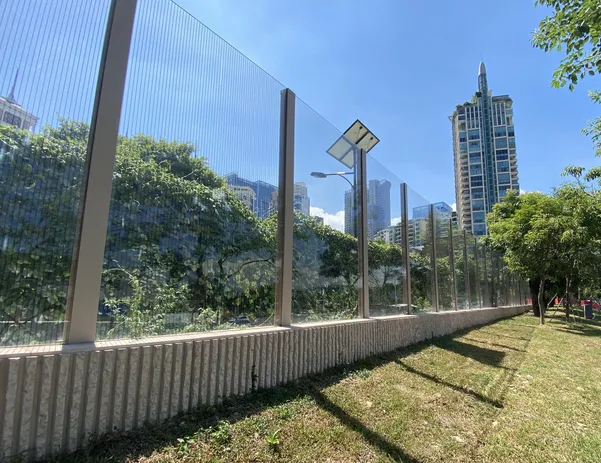

8 / 10 / 12 mm polycarbonate or cast acrylic window at the top of the barrier preserves light and visibility for residents.

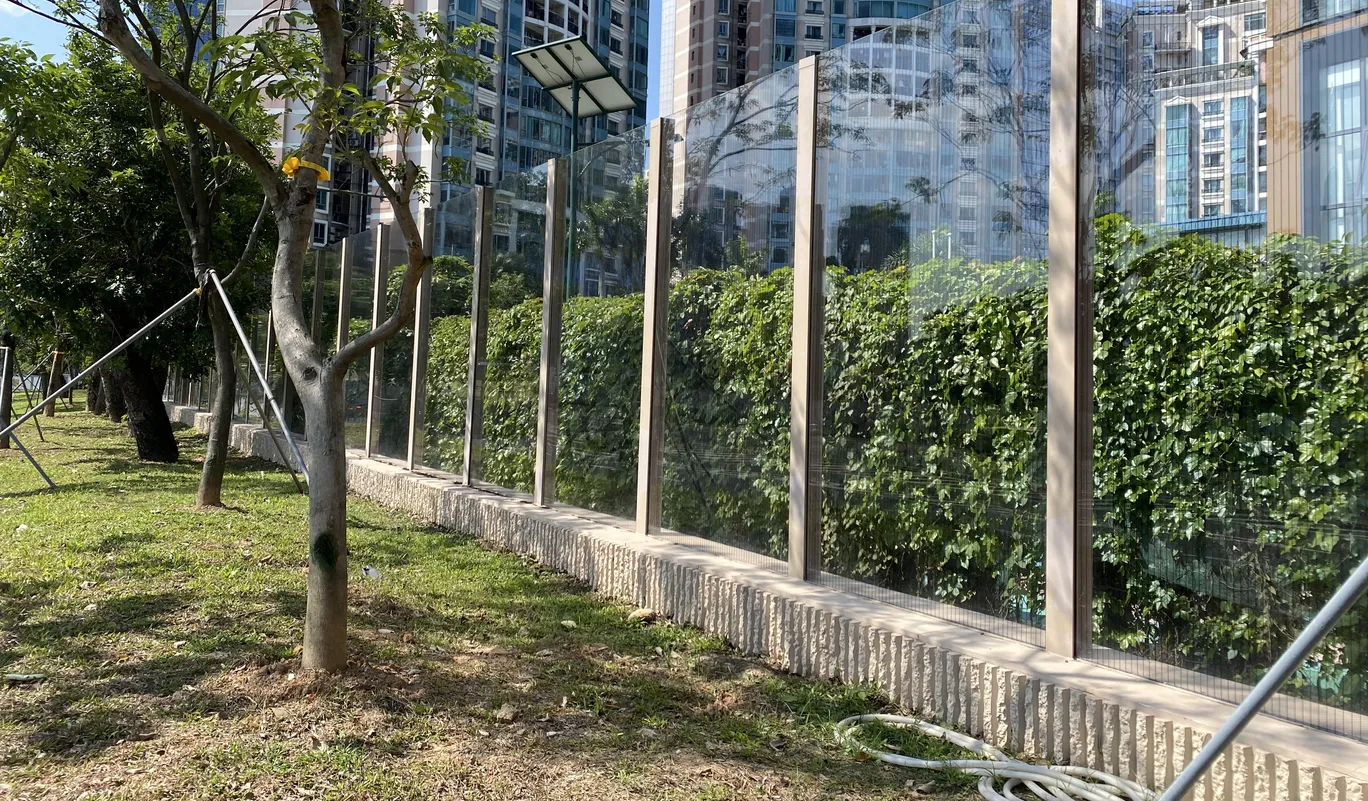

Vertical garden panel integration option with planter sections that support live vegetation along the barrier.
Full RAL color palette available for powder-coat finish to match architectural requirements in sensitive urban zones.
Designed for apartment buildings, housing estates, schools and hospitals where a softer visual profile is essential.
Balanced broadband insertion loss from 80-120 mm deep panels for typical urban traffic noise reduction targets.
Panels independently tested to EN 1793 and EN 1794 for acoustic and structural performance in urban environments.
