Yukings railway noise barriers and high-speed rail (HSR) acoustic barriers & sound walls are heavy-duty hybrid absorptive-reflective panels engineered to resist the slipstream suction and pressure wave of 250-350 km/h high-speed trains while delivering up to 45 dB insertion loss. Reinforced fastener systems, captive panel clips and anti-vibration EPDM gaskets are standard on all railway barrier projects.
Heavy-duty construction, captive fastener systems and HSR slipstream testing set Yukings railway noise barriers apart from conventional highway barriers for high-speed rail and railway projects.

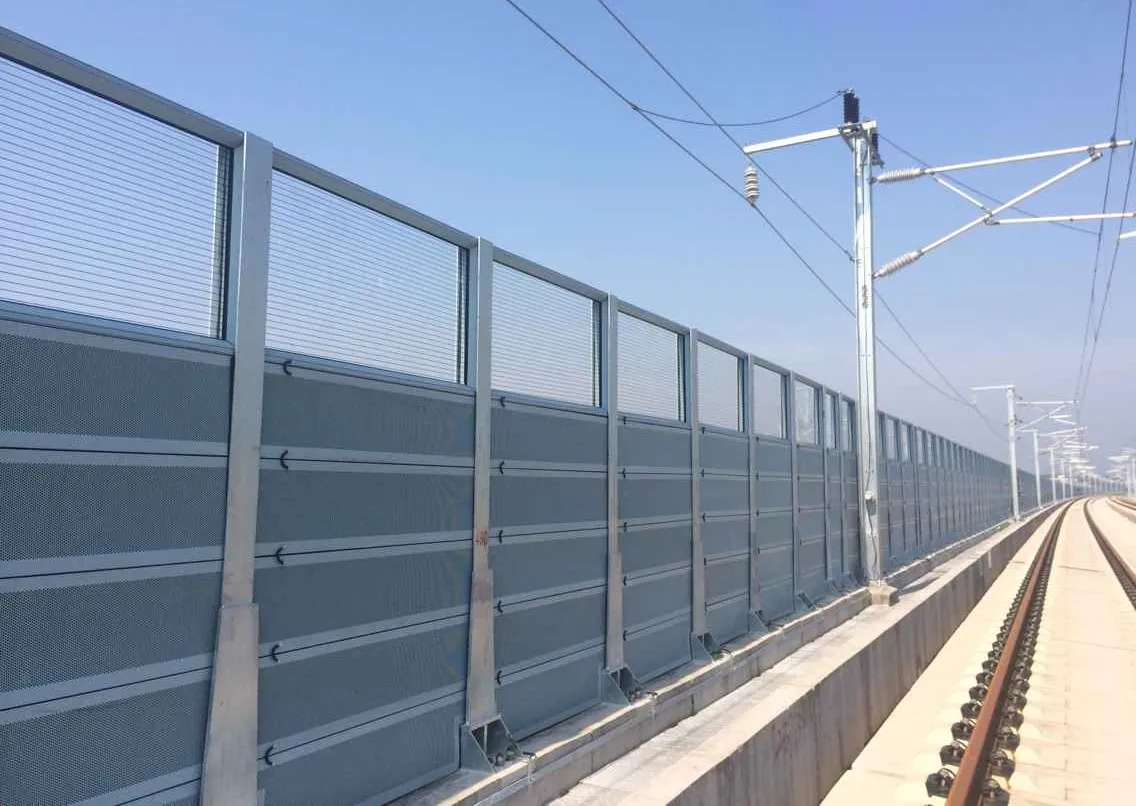

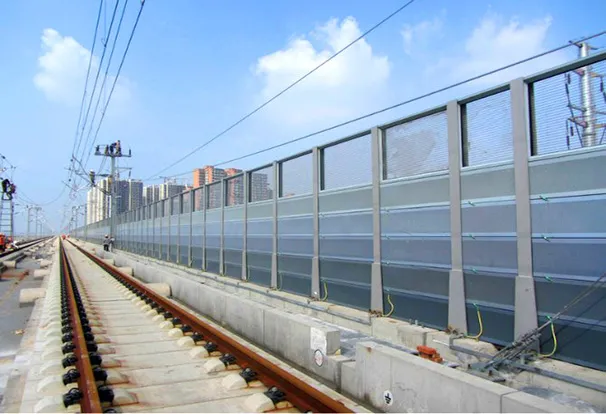

Yukings railway noise barriers combine a perforated absorptive face facing the track with a solid reflective back, connected via heavy-gauge steel framing. Captive panel clips securely fasten each panel to the H-post column to resist slipstream suction forces up to 3.0 kN/m² on 350 km/h high-speed rail lines, while anti-vibration EPDM gaskets dampen panel vibration and prevent structural fatigue over the 25-year design life.
Detailed specification covering insertion loss, panel construction, structural post spacing, corrosion class and transparent window options.
| Property | Value |
|---|---|
| Insertion Loss DL | 30 – 45 dB |
| Sound Insulation Rw | 38 – 55 dB |
| Panel Width | 2000 mm (HSR) / 2500 mm (conventional) |
| Panel Height | 500 mm |
| Panel Depth | 120 / 140 / 160 / 200 mm |
| Face Layer | perforated / louvered galvanized steel |
| Absorptive Core | rock-wool 100-140 kg/m³ with EPDM membrane |
| Reflective Back | 2-3 mm solid steel |
| H-post Column | H 125×125×6.5×9 to H 200×200×9×14 |
| H-post Spacing | 2.0 m (HSR) / 2.5 m (conventional) |
| Barrier Height | 3.0 – 8.0 m with cantilever cap option |
| Fastener System | captive panel clips + anti-vibration EPDM gaskets |
| Aerodynamic Profile | optional rounded top or cantilever cap to minimize slipstream |
| Design Service Life | 25 years |
| Warranty | 15 years structural |
| Corrosion | ISO 12944 C4-H |
| Fire Rating | Class A EN 13501-1 |
| Wind / Slipstream Load | 1.5 – 3.0 kN/m² project specified |
| Finish | hot-dip galvanized + optional RAL powder coat |
Heavy-duty construction, captive fastener systems and HSR slipstream testing set Yukings railway noise barriers apart from conventional highway barriers for high-speed rail and railway projects.
Panels tested to resist slipstream suction and pressure wave from 250-350 km/h high-speed trains with captive panel clips.
Captive panel clips securely lock each panel to the H-post column, preventing dislodgment under high-speed rail slipstream.
Perforated absorptive face facing the track with a solid reflective back to direct noise upward and away from trackside receivers.
EPDM gaskets between each panel and the H-post column dampen structural vibration and prevent fatigue over 25 years of service.
120-200 mm deep panels with 100-140 kg/m³ rock-wool core deliver up to 45 dB broadband insertion loss along HSR corridors.
Barrier heights from 3.0 m up to 8.0 m, with optional cantilever top cap or rounded aerodynamic cap for HSR lines.
ISO 12944 C4-H heavy industrial corrosion protection for railway barriers in coastal and industrial environments.
Panels independently tested to EN 1793 acoustic and EN 1794 structural standards with full test reports available.
